ZB 1180AS

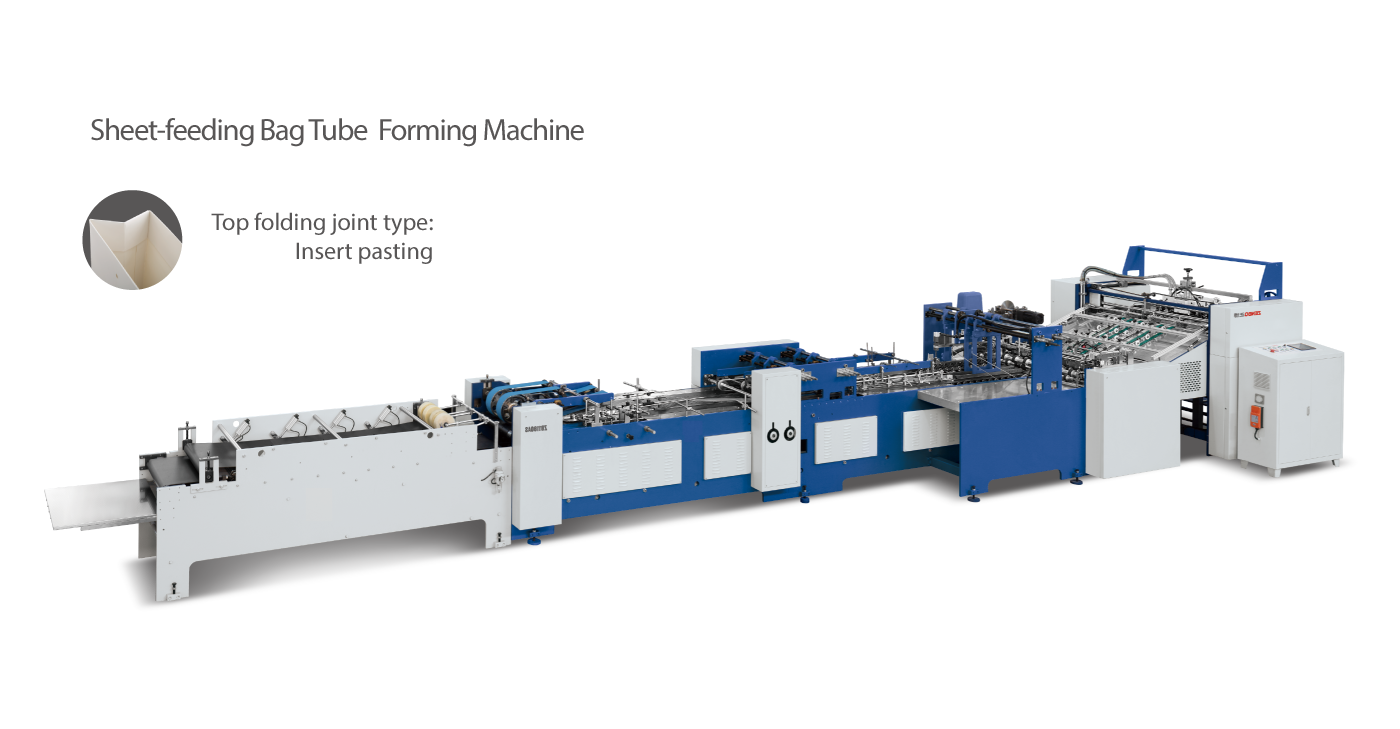

Sheet-feeding Bag Tube Forming Machine
Characteristics
ZB1180AS Sheet feeding bag tube forming machine (independent innovation) is suitable for digital industry, various type of customized paper bag making. This machine is easy to setup and operation, which bring high efficiency during production. The paper sheet automatic delivery by feeder, automatic positioning by guide and line aligning system, automatic side pasting(both hot-melt glue and cold glue available), top folding (insert pasting), tube forming, automatic gusset forming, compaction bag output. It is a good choice to produce digital industrial, B2C,C2C products,etc flexible individualization order.

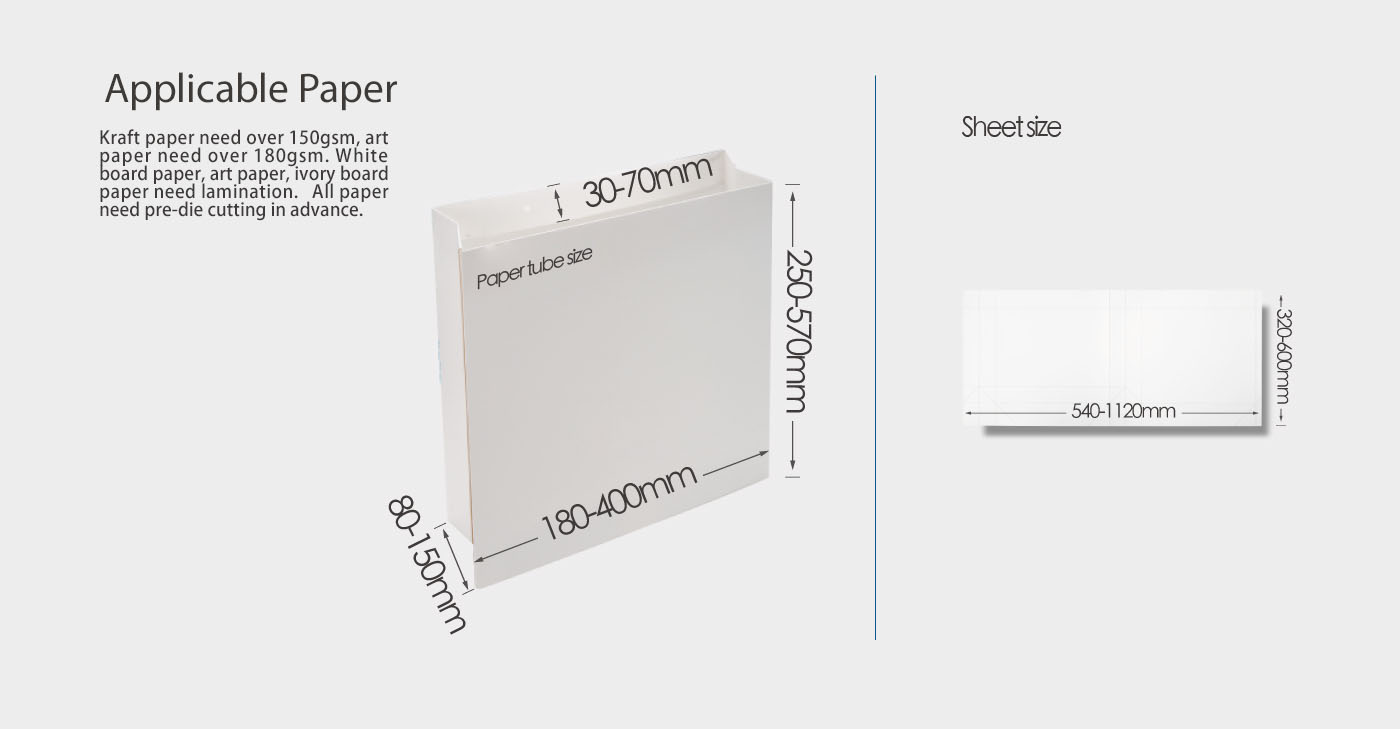

Technical parameter
| Max.Sheet(LxW) | 1120x600mm |
| Min.Sheet(LxW) | 540x320mm |
| Sheet Weight | 150g-300g/m2 |
| Bag Width | 180-400mm |
| Bottom Width | 80-150mm |
| Bag Length | 250-570mm |
| Total Power | 8kw |
| LxWxH | 12600x2500x1800mm |
| Speed | 50-80bags/min |
| Total Weight | 5.8T |
| Glue Type | Water soluble cold glue(hot-melt glue) |
Process flow
