ZB 700CT-240
Characteristics

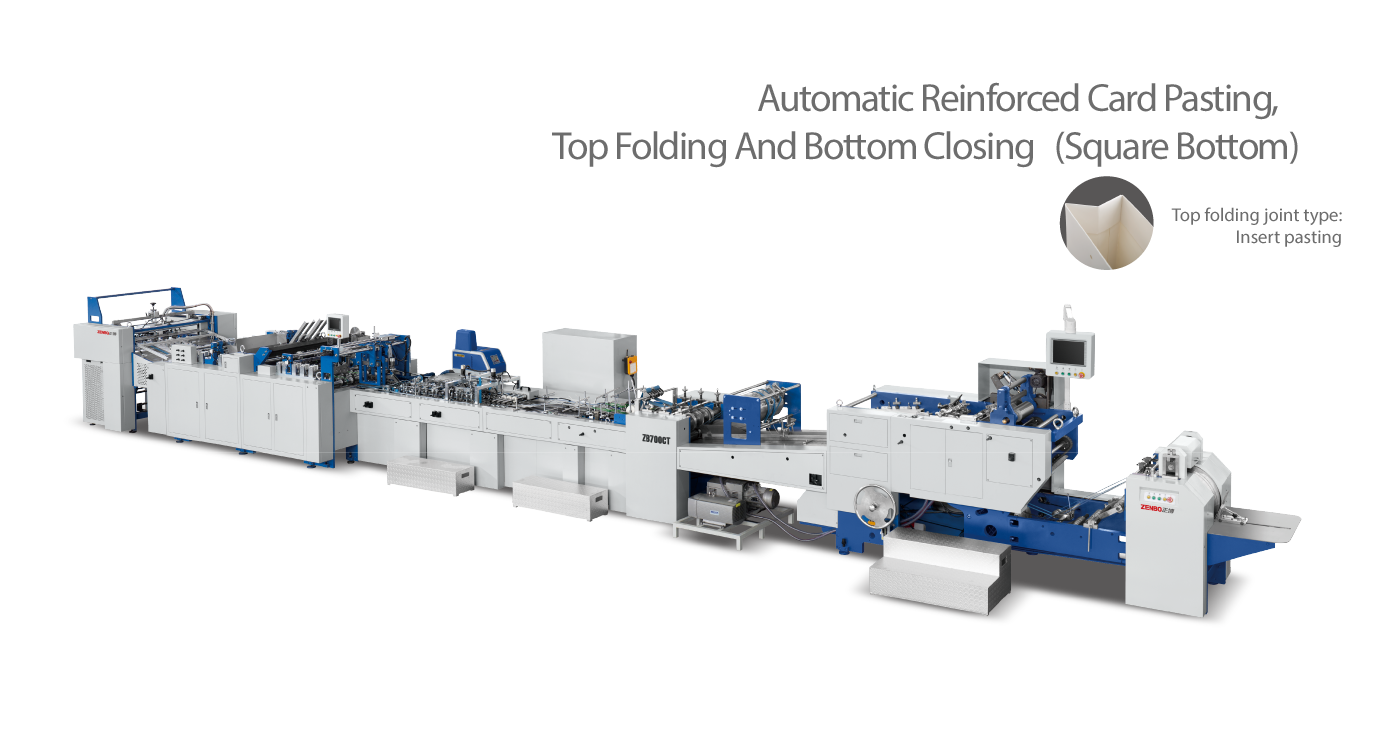

ZB700CT-240 Automatic sheet feeding paper bag making machine (independent innovation) adopts international advanced production process and management system. Humanized intelligence operation interface combines with PLC and Servo control system make this machine’s technology, performance and production efficiency achieve the leading level in the world.
ZB700CT-240 possess a large number of independent patents, create the high-speed automatic paper bag production. This machine adopts servo system for top reinforced card taking, realize the top reinforced card paste position adjustable. New “half-blade” device ensure bag body trackless. Adopts with PLC and Servo control system, reserve of extensible intelligent port for future system upgrades and remote services.
The basic working flow is sheet feeding, creasing, servo top reinforced card taking and pasting, top folding (insert pasting), tube forming, gusset forming, bottom open and gluing, bottom folding and closing, compaction and output.
All these steps increase the bag making efficiency and reduce the setup time, save a lot of labor cost for top reinforced card pasting. Realize automation, intelligent and high efficiency production requirement.
Product Video
Technical parameter

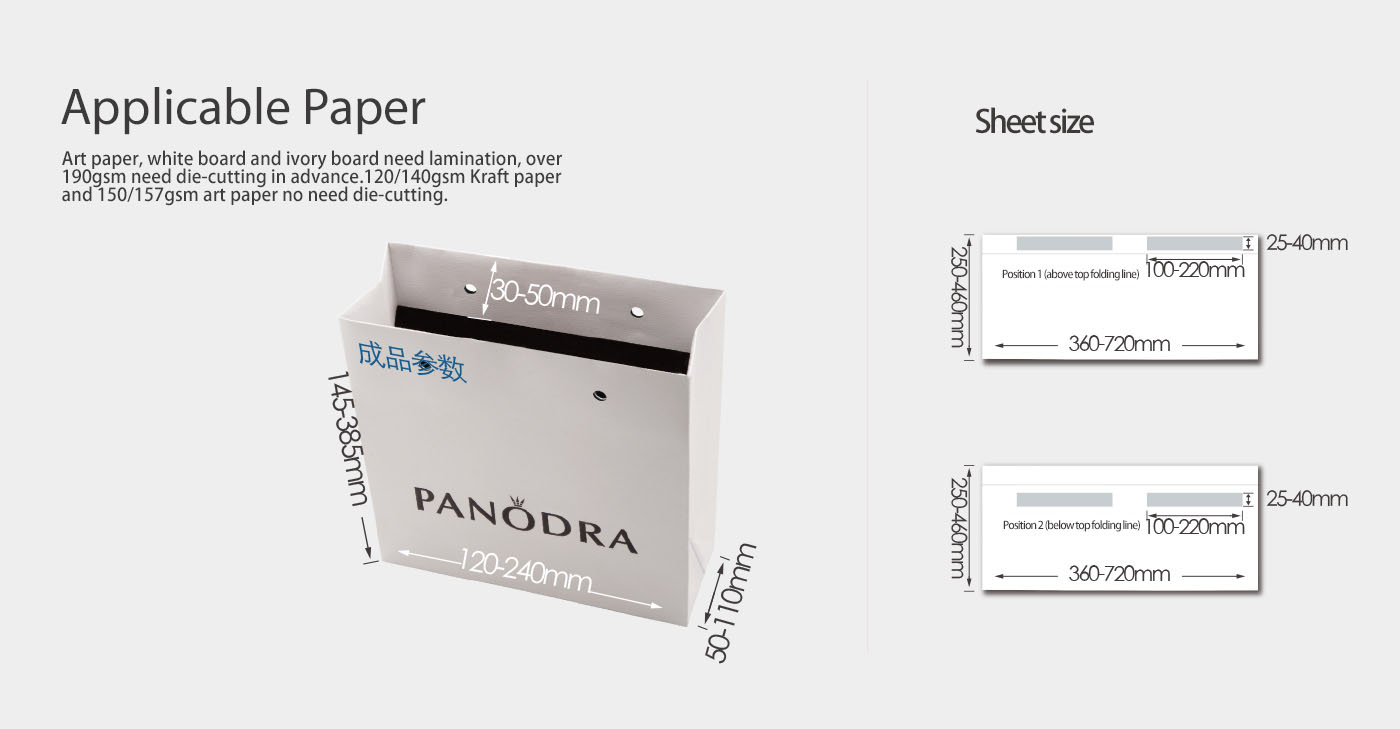

| Max.Sheet(LxW) | 720x460mm |
| Min.Sheet(LxW) | 325x250mm |
| Top Folding Depth | 30-50mm |
| Reinforced Paper Length | 100-220mm |
| Reinforced Paper Width | 25-40mm |
| Sheet Weight | 120g-250g/m2 |
| Reinforced Paper Weight | 200g-400g/m2 |
| Bag Height | 145-385mm |
| Bottom Width | 50-110mm |
| Bag Width | 120-240mm |
| Total Power | 15.5kw |
| Machine Size | 16500x2200x1800mm |
| Speed | 40-70bags/min |
| Total Weight | 12T |

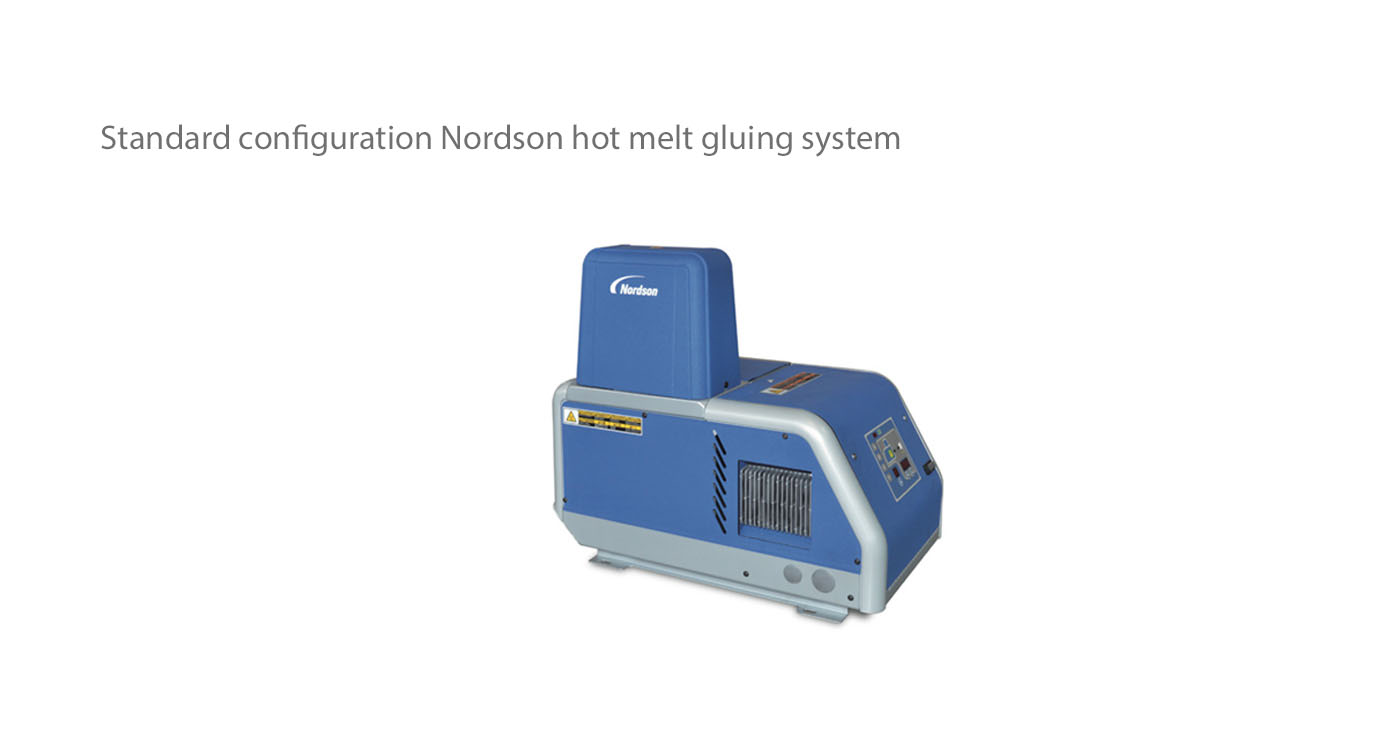

| Glue Type | Water soluble cold glue(hot-melt glue) |
Process flow
